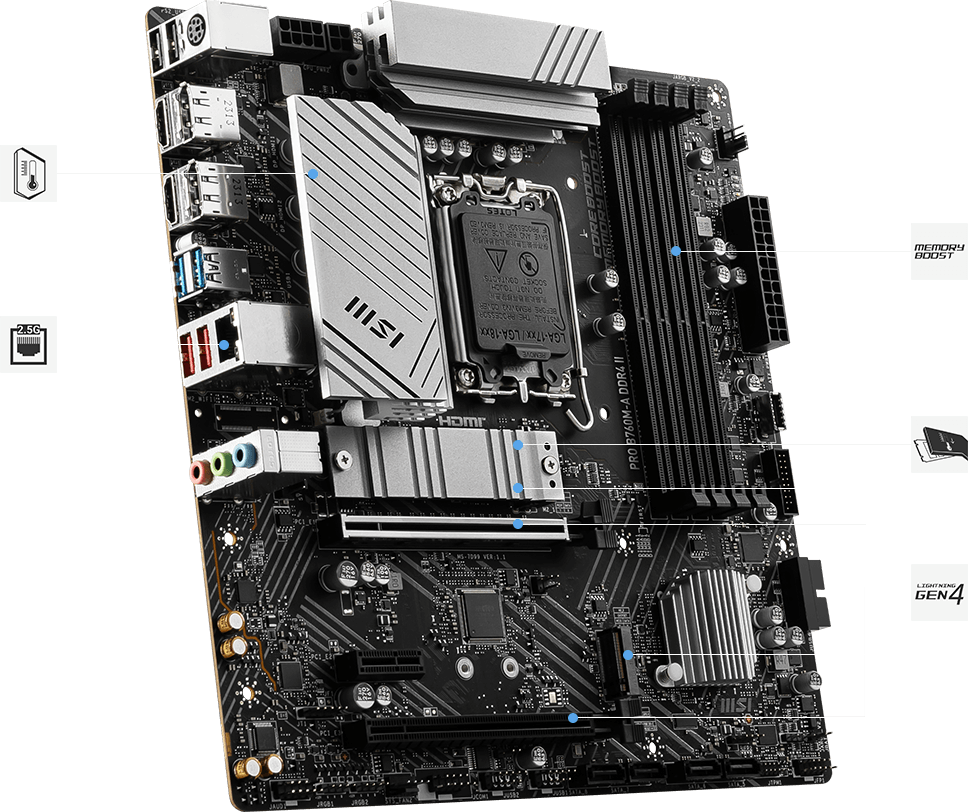

MSI PRO B760M-A DDR4 II

• Intel® Core™ 14th/13th/12th Gen


• Intel® Pentium® Gold


• Intel® Celeron®

Memory

• Slots: 4x DDR4


• Max Capacity: 128GB


• Memory Support:



  • Overclocking up to 5333 MHz (OC)


  • Dual-Channel mode


  • Non-ECC, unbuffered


  • Intel® Extreme Memory Profile (XMP) support





Onboard Graphics

• Outputs:



  • 2x HDMI™ (HDMI™ 2.1, 4K 60Hz)


  • 2x DisplayPort (DP 1.4, 4K 60Hz)





Expansion Slots

• PCI-E Slots:



  • 2x PCI-E x16 slots (1x Gen 4.0, 1x Gen 3.0)


  • 1x PCI-E x1 slot (Gen 3.0)





Audio

• Codec: Realtek® ALC897


• Channels: 7.1-Channel High Definition Audio

Storage

• M.2 Slots:



  • 2x M.2 (1x PCIe 4.0 x4 from CPU, 1x PCIe 4.0 x4/SATA from chipset)






• SATA Ports: 4x SATA 6G



  • Note: SATA8 unavailable with M.2 SATA SSD in M2_2





RAID Support

• RAID 0, RAID 1, RAID 5, RAID 10 for SATA devices

USB Ports

• Rear:



  • 2x USB 2.0


  • 2x USB 5Gbps Type A


  • 2x USB 10Gbps Type A


  • 1x USB 5Gbps Type C






• Front:



  • 4x USB 2.0


  • 4x USB 5Gbps Type A


  • 1x USB 5Gbps Type C





Networking

• LAN: Realtek® RTL8125BG 2.5G LAN

Internal I/O

• Multiple connectors including power, fan headers, USB, RGB headers, TPM header, and debug LEDs.

Back Panel Ports

• Connectors:



  • Keyboard/Mouse


  • DisplayPort


  • USB 3.2 Gen 1 Type-A


  • 2.5G LAN


  • Audio Connectors


  • USB 2.0


  • USB 3.2 Gen 2 Type-A





Operating System Support

• Windows® 11 (64-bit)


• Windows® 10 (64-bit)

Dimensions

• Form Factor: M-ATX


• Size: 243.84mm x 243.84mm
