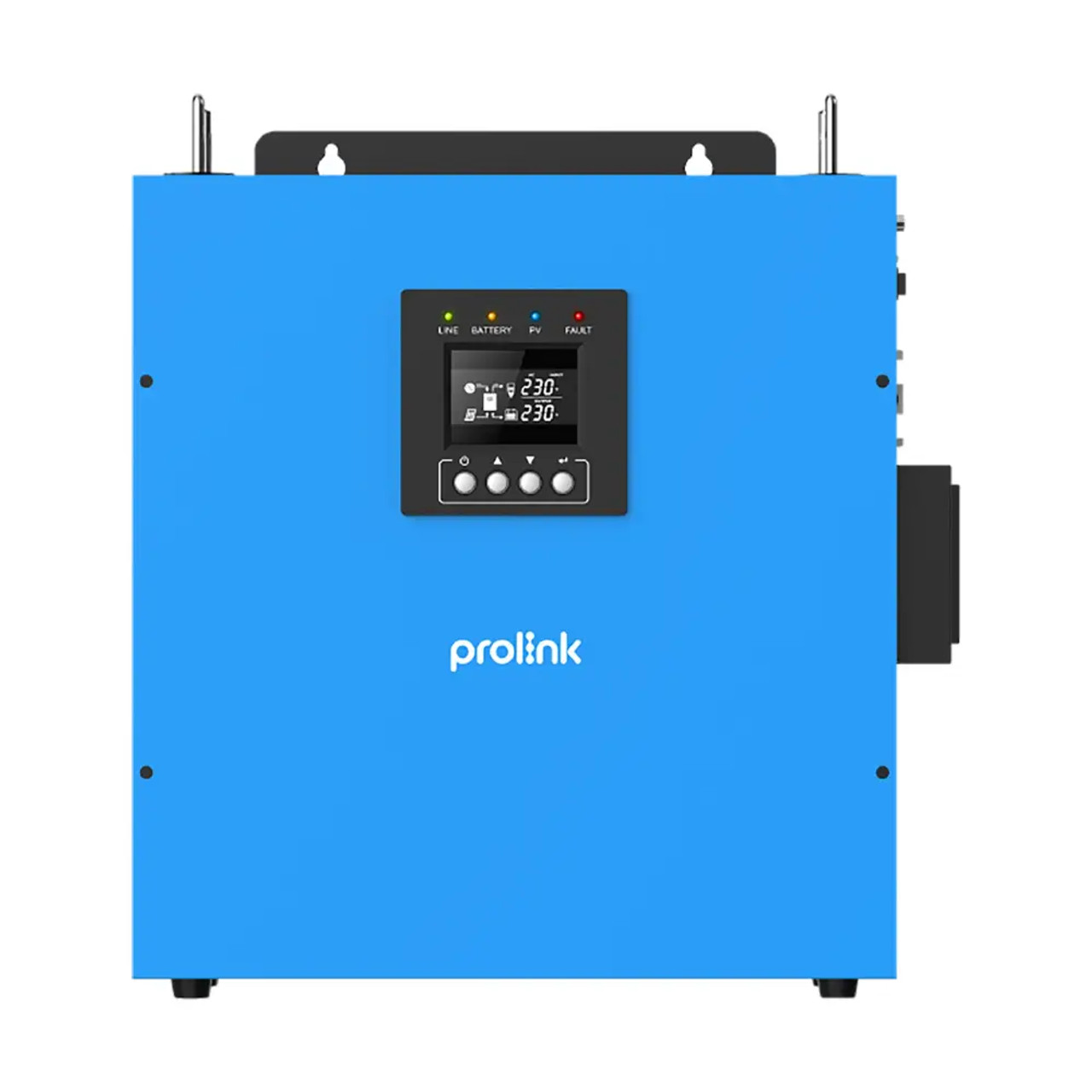

Prolink IPS3003 Inverter

General Information

• Rated Power: 3000VA / 2400W


• Dimensions (W x H x D): 385 x 382 x 148 mm


• Net Weight: 29 kg

Input Specifications

• Nominal Voltage: 220-240Vac


• Voltage Range:



  • Narrow: 170 ~ 280Vac


  • Wide: 90 ~ 280Vac






• Frequency: 50/60Hz (Auto sensing)

Output Specifications

• Nominal Voltage (Battery Mode): 220-240Vac


• Frequency Range (Battery Mode): 50Hz/60Hz ±1%


• Waveform (Battery Mode): Pure Sine Wave


• Transfer Time:



  • Narrow mode: <8ms


  • Wide mode: <40ms






• Overload Capability:



  • 1 min @ >110%


  • 0 s @ >120%






• Overload Protection: Circuit breaker or inner firmware protection


• Protection Features: Discharge, over-charged, overload, short-circuit protection

Battery Specifications

• Nominal Battery Voltage: 24Vdc


• Float Charging Voltage: 27V


• Charging Algorithm: 3-stage charging


• Charging Current: 10A / 20A (default) / 30A / 40A

Indicators & Management

• Display: LCD


• Alarm Notifications: Battery mode, low battery, overload, fault, etc.


• Auto Recharge: Yes


• Auto Restart: Yes


• Power Management Software: Yes


• RS232 Interface: Yes
