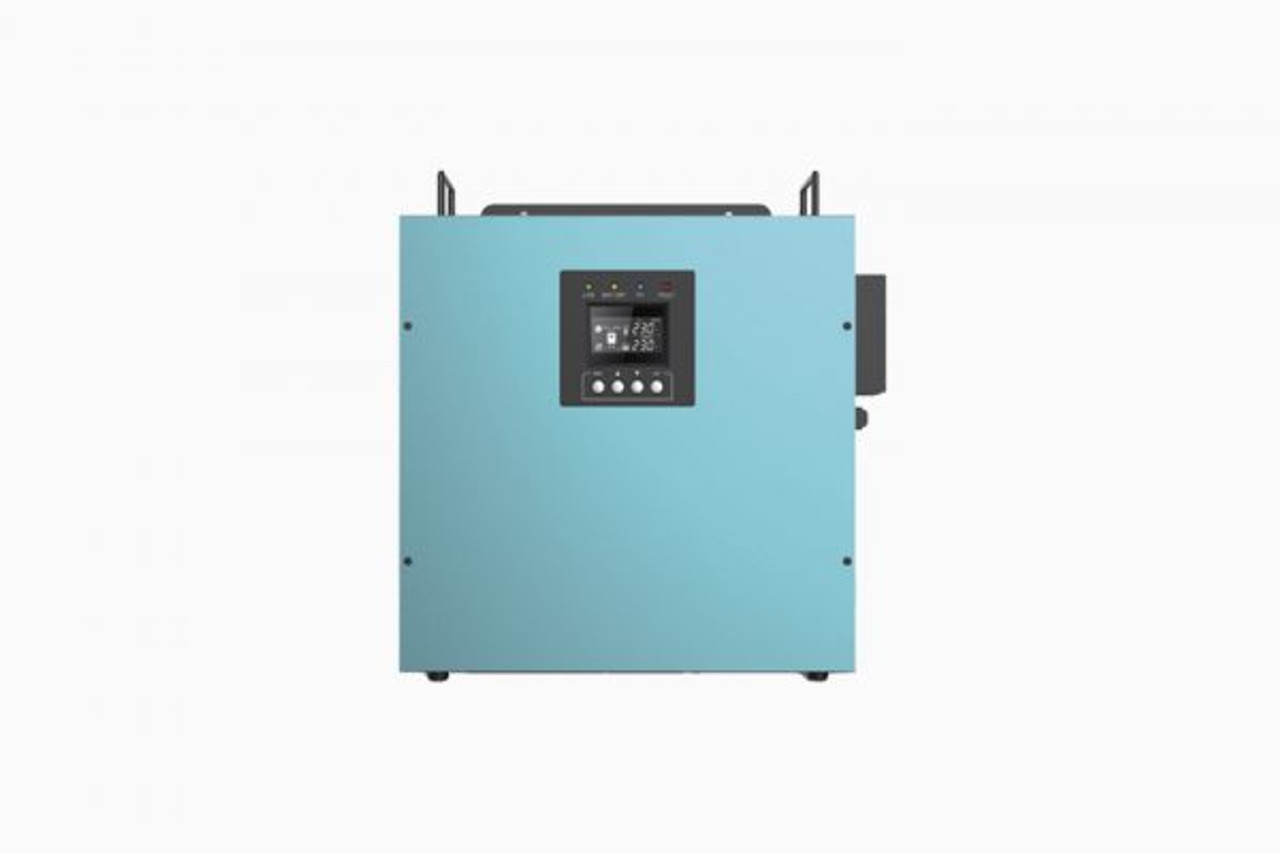

Prolink IPS5003 Inverter

Specifications Summary

• Rated Power: 5000VA / 4000W


• Dimensions (W x H x D): 385 x 382 x 148 mm


• Net Weight: 32 kg

Input

• Nominal Voltage: 220-240Vac


• Voltage Range:



  • Narrow: 170-280Vac


  • Wide: 90-280Vac






• Frequency: 50/60Hz (Auto sensing)

Output

• Nominal Voltage (Battery Mode): 220-240Vac


• Frequency Range (Battery Mode): 50Hz/60Hz ±1%


• Waveform (Battery Mode): Pure Sine Wave


• Transfer Time:



  • Narrow mode: <8ms


  • Wide mode: <40ms






• Overload Capability:



  • 1 min @ >110%


  • 0s @ >120%






• Overload Protection: Circuit breaker or inner firmware protection


• Protection Features: Discharge, over-charge, overload, short-circuit

Battery

• Nominal Battery Voltage: 48VDC


• Float Charging Voltage: 54V


• Charging Algorithm: 3-stage charging


• Charging Current Options: 10A, 20A (default), 30A, 40A

Indicators & Management

• Display: LCD


• Alarms: Battery mode, low battery, overload, fault, etc.


• Auto Recharge: Yes


• Auto Restart: Yes


• Power Management Software: Yes
