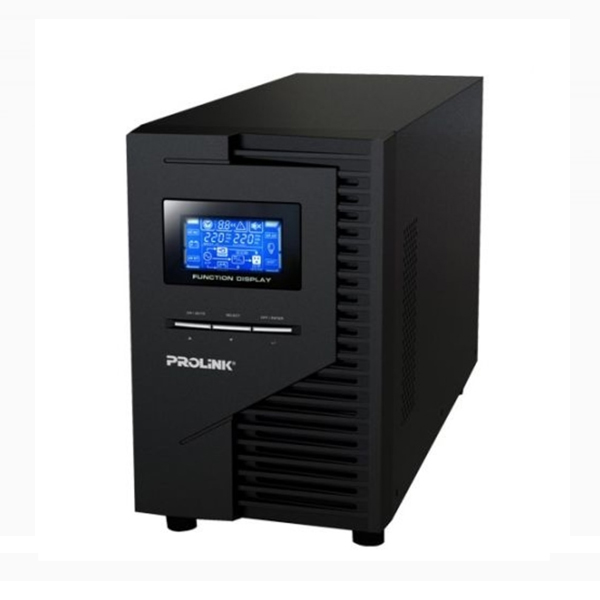

PROLINK PRO901WL ONLINE UPS LONG RUN WITHOUT BATTERY 24V

UPS Specifications

• Type: Tower


• Phase: Single phase with ground


• Rating: 1000 VA


• Nominal Power: 800 W


• Dimensions (Standard Model): 282 x 145 x 220 mm (D x W x H)


• Weight (Standard Model): 9.8 kg


• Dimensions (Long-run Model): 282 x 145 x 220 mm (D x W x H)


• Weight (Long-run Model): 4.1 kg

Input

• Connection Type: IEC 320-C14


• Nominal Voltage: 200/208/220/230/240 VAC


• Voltage Range:



  • 110-300 VAC (Load at 50%)


  • 160-280 VAC (Load at 100%)






• Frequency Range: 45 ~ 70 Hz


• Power Factor: ≥ 0.99

Output

• Connection Type:



  • 3 x Universal socket (PRO901WS)


  • 2 x Universal socket (PRO901WL)






• Nominal Voltage: 200/208/220/230/240 VAC


• Voltage Regulation: ±1%


• Frequency Range:



  • Synchronized Range: 47 ~ 53 Hz or 57 ~ 63 Hz


  • Battery Mode: 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz






• Current Crest Ratio: 3:1


• Harmonic Distortion:



  • ≤3% THD (Linear load)


  • ≤6% THD (Non-linear load)





Alarm & Indicators

• Battery Mode: Sounding every 4 seconds


• Low Battery: Sounding every second


• Overload: Sounding twice every second


• Fault: Continuously sounding


• LCD Display: Load level, Battery Level, AC mode, Battery mode, Bypass mode, Fault

Connectivity, Control & Monitoring

• Front Panel: Status LED, Function keys, LCD display


• Communication: Smart RS232, USB Port

Battery

• Standard Model Type: 12V / 9Ah


• Number of Batteries: 2


• Typical Recharge Time: 4 hours to recover to 90% capacity


• Long-run Model Type: Depends on external battery capacity


• Number of Batteries: 2 or 3


• Charging Current (max): Adjustable (1A / 2A / 4A / 6A)
