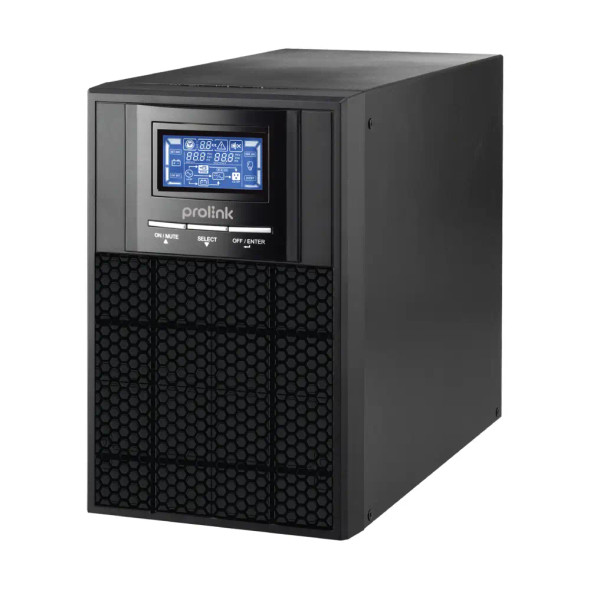

PROLiNK Professional II Series (1P 1P) is a single-phase online UPS 3000 VA 2400 W 72V ,Without Batteries

• Type: Single-phase online UPS


• Capacity: 3000 VA / 2400 W / 72V (without batteries)


• Brand: Prolink


• Condition: 100% brand new from factory, high quality


• Price: Economical


• Shipping: Sold and shipped from Singapore for faster delivery

Specifications:

• Color: Black


• UPS Type: Tower


• Phase: Single phase with ground

Input:

• Connection Type: IEC 320-C20


• Nominal Voltage: 200/208/220/230/240 VAC


• Voltage Range:



  • 110-300 VAC (Load at 50%)


  • 160-280 VAC (Load at 100%)






• Frequency Range: 45 ~ 70 Hz


• Power Factor: ≥ 0.99

Output:

• Connection Type:



  • 4 x Universal socket (PRO903WS)


  • 2 x Universal socket (PRO903WL)


  • Terminal






• Nominal Voltage: 200/208/220/230/240 VAC


• Voltage Regulation: ±1%


• Frequency Range (Synchronized): 47 ~ 53 Hz or 57 ~ 63 Hz


• Frequency Range (Battery Mode):



  • 50 Hz ± 0.25 Hz


  • 60 Hz ± 0.3 Hz






• Current Crest Ratio: 3:1


• Harmonic Distortion:



  • ≤3% THD (Linear load)


  • ≤6% THD (Non-linear load)





Alarms & Indicators:

• Battery Mode Alarm: Sounding every 4 seconds


• Low Battery Alarm: Sounding every second


• Overload Alarm: Sounding twice every second


• Fault Alarm: Continuously sounding


• LCD Indicators: Load level, Battery level, AC mode, Battery mode, Bypass mode, Fault

Connectivity, Control & Monitoring:

• Front Panel: Status LED, Function keys, LCD display


• Communication Ports: Smart RS232, USB port

Battery:

• Type: 12V / 9Ah


• Number of Batteries: 6


• Typical Recharge Time: 4 hours to recover to 90% capacity


• Long-run Model Type: Dependent on external battery capacity (6/8 batteries)


• Charging Current (max): Adjustable (1A / 2A / 4A / 6A)

Rear Panel:

• AC Input


• Input circuit breaker


• USB communication port


• RS-232 communication port


• Intelligent slot


• External battery connection (available only for L model)


• Output receptacles
