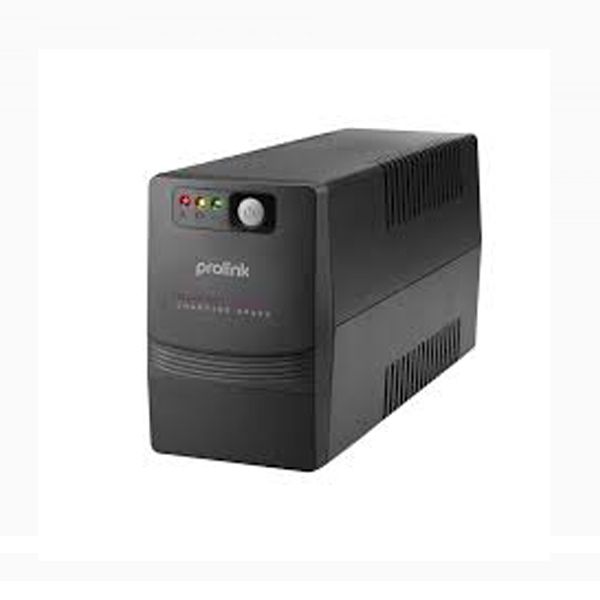

PROLINK UPS PRO1501 1500VA INTERNAL BATTERY

General

• Capacity: 1500VA


• Dimensions: 320 x 130 x 182 mm (D x W x H)


• Weight: 10.4 kg

Input

• Nominal Voltage: 230VAC


• Voltage Range: 140 - 300 VAC ± 5%


• Nominal Frequency: 50 or 60Hz (Auto sensing)

Output

• Voltage Regulation: ± 10%


• Frequency: 50 or 60Hz ± 1Hz


• Transfer Time (typical): 2 - 6 ms


• Waveform: Simulated Sinewave

Battery

• Number of Batteries: 2 x 12V/10Ah


• Recharge Time (typical): 2-4 hours to recover to 90% capacity

Alarm & Indicators

• LED Display:



  • AC Mode: Green Lighting


  • Battery Mode: Yellow Flashing every 10 seconds


  • Overload: Red Flashing every second


  • Fault: Red Lighting






• Sounding Alarms:



  • Battery Mode: Sounding every 10 seconds


  • Low Battery: Sounding every second


  • Overload: Sounding every 0.5 second


  • Battery Replacement Alarm: Sounding every 2 seconds


  • Fault: Continuously sounding





Rear Panel

• AC Input: Standard AC input port


• Bypass Output: Without battery backup


• USB Port: Available in PRO1501SFCU model


• RJ45 Ports: Network protection


• Backup Outlets: For connecting devices


• Cooling Fan: For efficient heat dissipation
