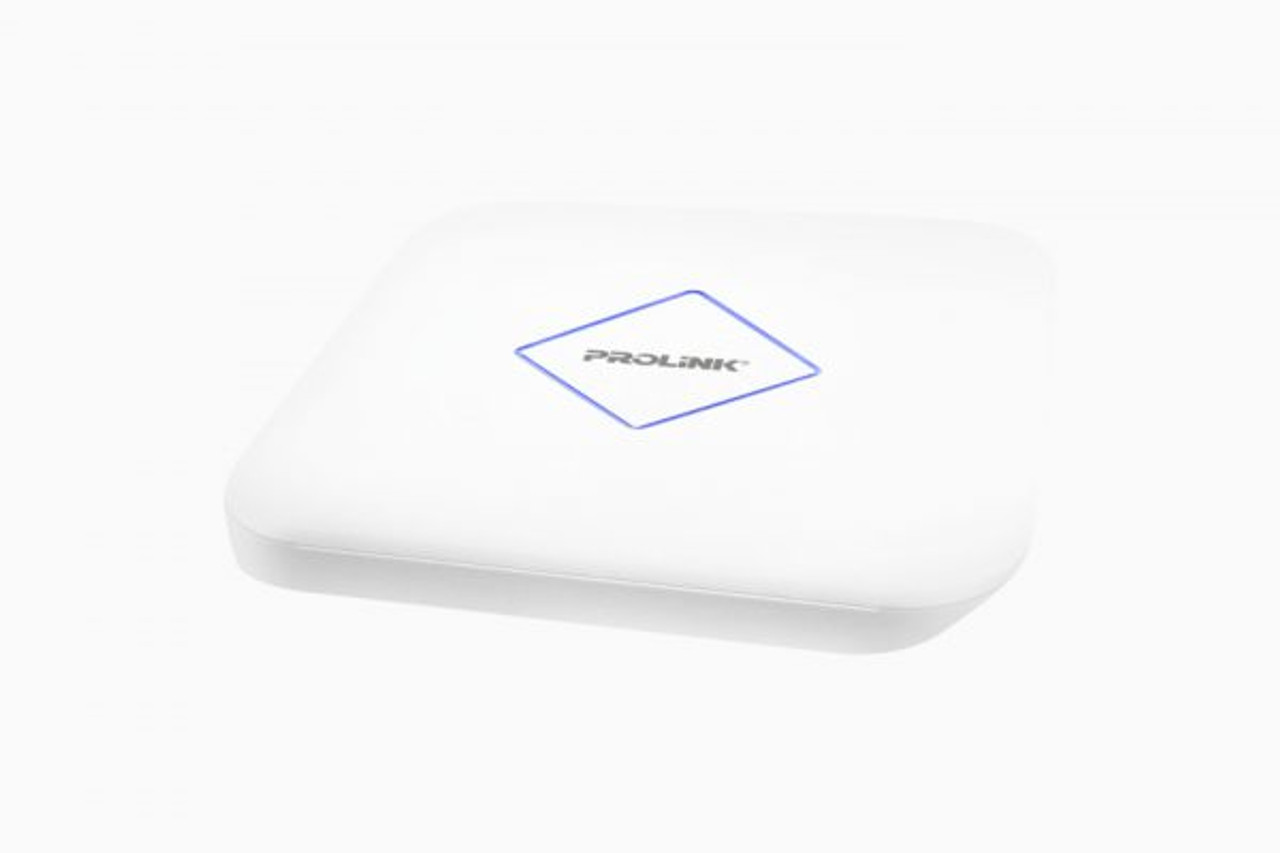

PROLINK WIRELESS AC CEILING ACCESS POINT 1200 Mbps

• 2.4GHz: IEEE 802.11 b/g/n


• 5GHz: IEEE 802.11 a/n/ac

Transmit Power

• Max Power: 20 dBm (both 2.4GHz & 5GHz)

Wireless Functionality

• Band-steering: 5GHz preferred


• Fast Roaming


• Automatic Channel Assignment


• Transmit Power Control


• Airtime Fairness


• Maximum Client Connection Setting


• Wireless Schedule


• Reboot Schedule


• Software Mode: Fit AP Mode

Wireless Security

• Captive Portal Authentication


• MAC Address Authentication


• Wireless Isolation Between Clients


• SSID to VLAN Mapping


• WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Software Mode

• Fat AP Mode Features:



  • Multiple SSIDs


  • Automatic Channel Assignment


  • Transmit Power Control


  • Maximum Client Connections Setting


  • Guest Network


  • Wireless MAC Address Filtering


  • Wireless Isolation between clients





Interface

• Ports:



  • 1x Gigabit Ethernet RJ45 WAN/POE (supports IEEE 802.3at POE)


  • 1x Gigabit Ethernet RJ45 LAN


  • 1x DC Jack input





LED Indicators

• 1x Multi-colour LED


• 1x WAN LED


• 1x LAN LED

Buttons

• 1x Reset button

Power Supply

• Options:



  • PoE (802.3at)


  • External 12VDC 1.5A power supply





Antennas

• 2.4GHz: 2x 5dBi


• 5GHz: 2x 5dBi

Mounting

• Options: Ceiling/Wall (mounting kit included)

OS Supported

• Microsoft Windows 7/10


• Mac OS 10.6 and above


• Linux
